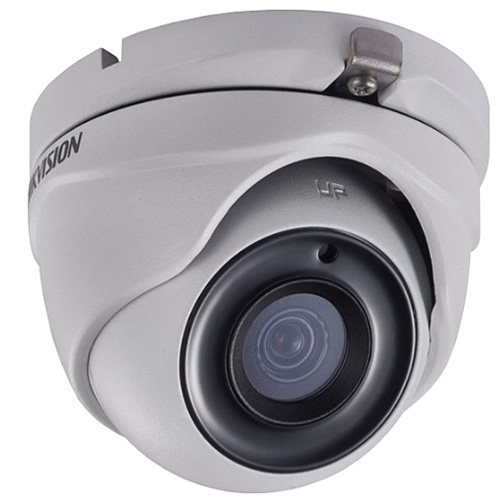

CAMERA TVI 2CE76D3T-ITMF
-
Cảm biến hình ảnh CMOS độ phân giải 2MP
-
Ngõ ra analog hình ảnh HD đẹp, lên tới 1080P
-
Quan sát ngày đêm với hồng ngoại thông minh.
-
Hồng ngoại lên tới 20m
-
Giảm nhiễu kỹ thuật số 3D - DNR
-
Chống nước, chống bụi tiêu chuẩn IP67
-
Chống ngược sáng thực 120 dB true WDR
Danh mục : CAMERA HIK VISION CAMERA TVI
| Camera | |
| Image Sensor: | 2.0 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1920 (H) × 1080 (V) |
| Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | PAL: 1080p@25fps |
| NTSC: 1080p@30fps | |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| BLC: | Support |
| Up the Coax: | Support |
|
Menu
|
|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| BLC: | Support |
| AGC: | Low/middle/high |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
|
Interface
|
|
| Video Out: | 1 HD analog output |
|
General
|
|
| Material: | Metal |
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption: | Max. 4.6 W |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimension: | 89.47 mm × 68.2 mm (3.52" × 2.68") |
| Weight: | Approx. 240 g (0.53 lb.) |
