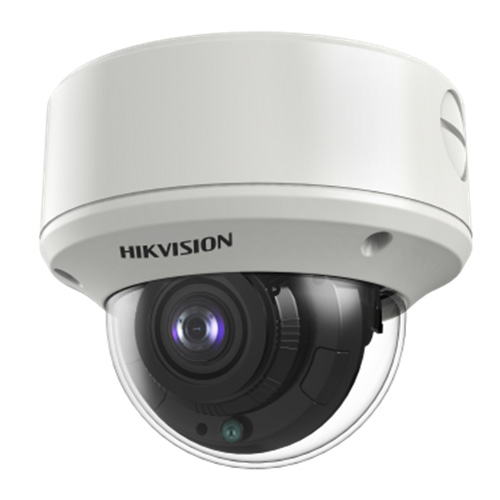

CAMERA TVI 2CE5AU1T-VPIT3ZF
- Camera 4 trong 1 (TVI/AHD/CVI/CVBS) 8MP
- 8.29 MP high performance CMOS
- Độ phân giải 3840 × 2160
- Ống kính 2.7 mm to 13.5 mm motorized vari-focal lens
- Hồng ngoại Smart EXIR 2.0
- Lên đến 60m (Dome)
- Lên đến 80m (Thân)
- IP67
Danh mục : CAMERA HIK VISION CAMERA TVI
| Camera | ||
|---|---|---|
| Image Sensor: | 8.29 MP high performance CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 3840 (H) × 2160 (V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s | |
| Lens: | 2.7 mm to 13.5 mm motorized vari-focal lens | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N | |
| Synchronization: | Internal Synchronization | |
| Lens | ||
|---|---|---|
| Horizontal Field of View: | 108.1° to 45.6° | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto/Color/BW (Black and White) | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Material: | Metal | |
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 9 VDC to 15 VDC(-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC)*You are recommended to use one power adapter to supply the power for one camera. | |
| Power Consumption: | Max. 6.4 W (-A: Max. 8.2 W) | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 60m | |
| Communication : | Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
|
| Dimension: | Ø 145 mm × 111.3 mm (Ø 5.69" × 4.37") | |
| Weight: | Approx. 860 g (1.90lb.) | |
