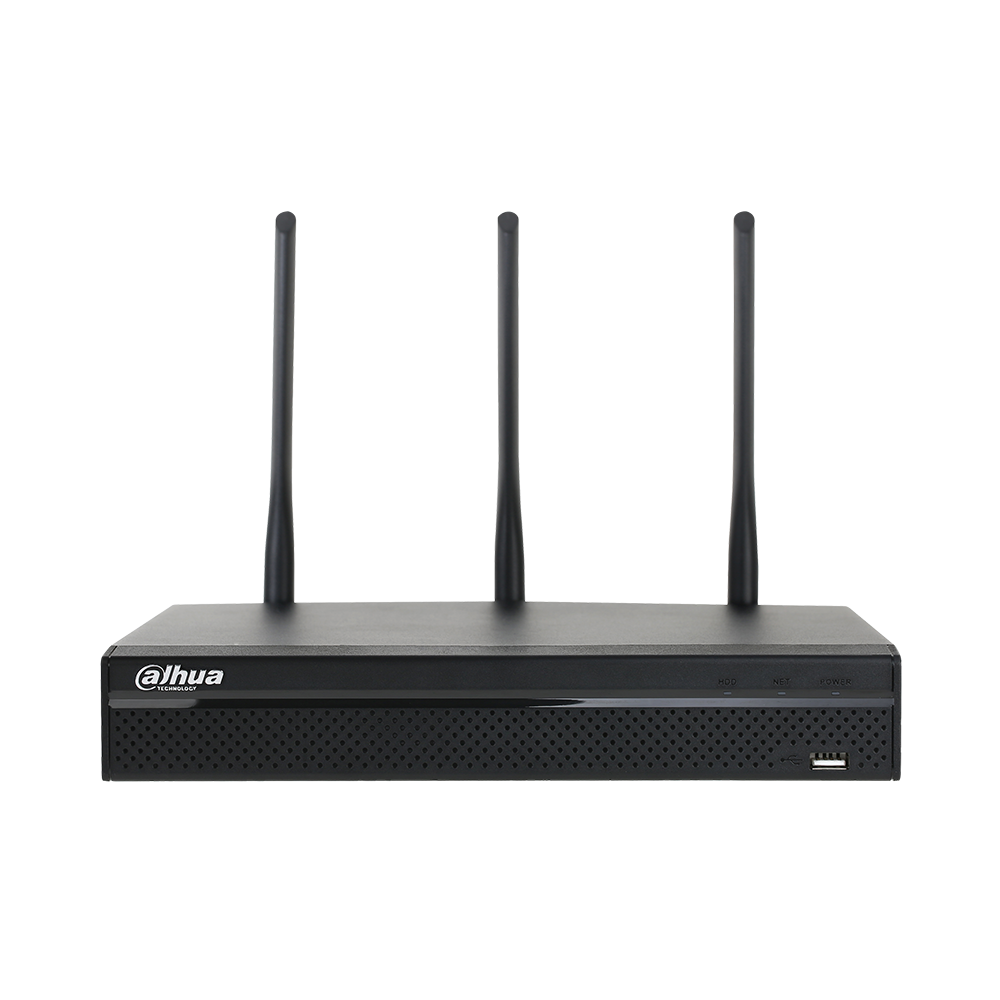

ĐẦU THU DHI-NVR4104HS-W-S2
- Đầu ghi hình 4 kênh IP, chuẩn nén hình H.264/MJPEG, băng thông đầu vào tối đa 80Mbps
- Hỗ trợ lên đến camera 5MP, ngõ ra tín hiệu video đồng thời HDMI/VGA
- độ phân giải 1920×1080, 1280×1024, 1280×720, 1024×768, cho phép xem lại đồng thời 4 kênh
- hỗ trợ kết nối nhiều thương hiệu camera với chuẩn tương thích Onvif 2.4
- Hỗ trợ đồng thời 2 băng tần 2.4GHz and 5GHz. Điều khiển camera quay quét 3D thông minh
- Hỗ trợ 1 ổ cứng 6TB, 2 USB2.0
- Hỗ trợ giao thức WIFI WPS (Thêm camera chỉ bằng 1 nút bấm)
- Phầm mềm quản lý thông minh, cho phép kết nối từ xa qua máy tính và thiết bị di dộng
Danh mục : CAMERA DAHUA ĐẦU THU NVR
| System | |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| Multi-screen Display | 1/4 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18),
Video Loss and Camera Blank |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback and Backup | |
| Playback | 1/4 |
| Search Mode | Time /Date, MD and Exact Search
(accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA III Ports, Up to 6 TB capacity for each HDD |
| HDD Mode | Single |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB Ports (2 USB2.0) |
| RS232 | N/A |
| RS485 | N/A |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Audio and Video | |
| IP Camera Input | 4 Channel |
| Two-way Talk | N/A |
| Recording | |
| Compression | H.264/MJPEG |
| Resolution | 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Network | |
| Interface | 1 RJ-45 Port (10/100Mbps) |
| Ethernet Port | 1 Independent 100Mbps Ethernet Port |
| PoE | N/A |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Electrical | |
| Power Supply | Single, DC12V/2A |
| Power Consumption | <10W (Without HDD) |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 260mm x 246.4mm x 47.6mm
(10.24″ x 9.7″ x 1.87″) |
| Net Weight | 0.5kg (1.1 lb) (Without HDD) |
| Gross Weight | 2.0kg (4.4 lb)(Without HDD) |
| Certifications | |
| CE | Coming soon |
| FCC | Coming soon |
